TouchHub - Indoor Home Security Command Terminal (PLC VD3200 PM) — Pollo Security, available from StrixLink Lahore

TouchHub – Indoor Home Security Command Terminal

Pollo Security Model: PLC VD3200 PM Available in Lahore

Contact for Price

  • Resolution: 6 MP
  • Micro-SD storage up to 256GB
  • 8-channel alarm input support
  • Up to 4-channel live video display
  • Certified CE / FCC, RoHS compliant
  • Supports IP cameras up to 6MP resolution

Stock changes daily. Please confirm availability on WhatsApp before travelling.

Download datasheet (PDF) 551 KB
  • WarrantyAll Pollo Security products supplied by StrixLink carry the manufacturer warranty. Confirm the exact warranty term for your model on WhatsApp before you order.
  • InstallationProfessional installation available across Lahore. Installation is quoted separately based on the number of cameras, cable runs and site conditions.
  • DeliveryDelivery available across Lahore and to other cities in Pakistan. Delivery time and charges are confirmed when you place your order.

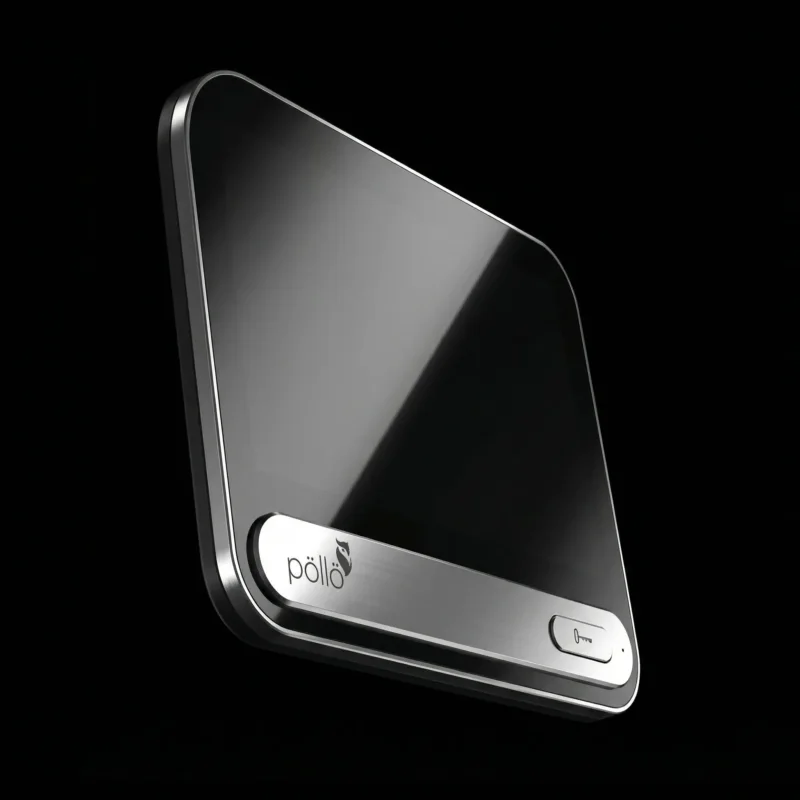

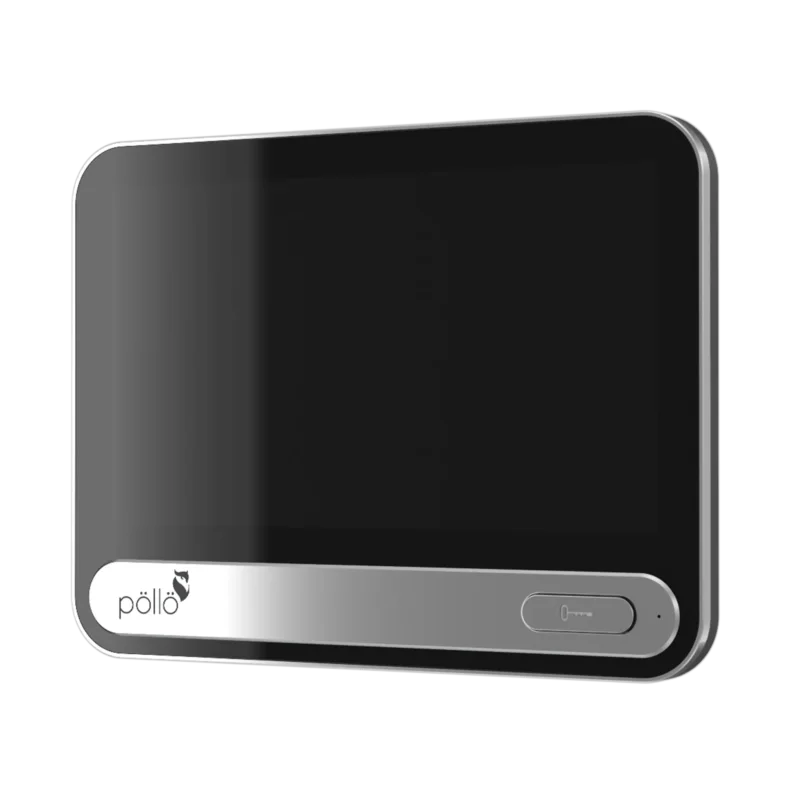

About the TouchHub - Indoor Home Security Command Terminal

Think of TouchHub as the screen and intercom point of a system, not the recorder. The 7-inch capacitive IPS panel runs on Linux, shows up to four camera feeds at once, and can be bound to as many as 16 IP cameras and five indoor extensions. It accepts streams up to 6MP with H.265+ handling, and takes power from PoE or DC 12V while drawing under 6W. The limitation to plan for is placement: it is a wall-mounted indoor unit on 2.4GHz Wi-Fi or 100Mbps Ethernet, so the mounting point needs a cable or solid signal.

Key benefits

  • Seven-inch capacitive IPS touch screen replaces fiddly button-driven indoor panels
  • Displays four live feeds at once and binds up to sixteen IP cameras
  • Accepts camera streams up to 6MP with H.265+ and H.264 decoding
  • Draws under 6W and accepts PoE, so one cable carries data and power
  • Eight alarm inputs let sensors and door contacts tie into the same panel
  • Built-in microphone and speaker with noise suppression support talk-back to door units

Where it works well

  • Drawing room wall of a Johar Town house
  • Entrance lobby of a Model Town family home
  • Manager's cabin in a Gulberg office suite
  • Upper-floor landing of a Bahria Town villa
  • Front desk of a small clinic or showroom

Technical specifications

Manufacturer-published specifications. Confirm critical figures against the datasheet before ordering.

Resolution6 MP
Video CompressionH.265+ / H.264
AudioBuilt-in Microphone
ConnectivityWi-Fi, PoE
Power SupplyDC 12V

Features

  • 7” IPS touch screen with smooth capacitive operation
  • Linux OS for stable and secure performance
  • Up to 4-channel live video display
  • Supports IP cameras up to 6MP resolution
  • Advanced video compression: H.265+ / H.265 / H.264
  • Built-in microphone & speaker with noise suppression
  • Supports 16 IP cameras and 5 indoor extensions
  • Wi-Fi (2.4GHz) and 100Mbps Ethernet connectivity
  • Micro-SD storage up to 256GB
  • 8-channel alarm input support
  • DC 12V / PoE power with low consumption (<6W)
  • Wall-mount design, compact and lightweight
  • Certified CE / FCC, RoHS compliant

Frequently asked questions

Does TouchHub record video by itself?

It is built as a display and control terminal, not a recorder with hard disk bays. Micro-SD storage up to 256GB is supported and it shows live feeds from bound IP cameras, but a site needing long retention should still run a DVR or NVR alongside. We normally pair it with a recorder and use the panel for viewing and talk-back.

How many cameras can it show at the same time?

Up to four channels display live together on the 7-inch screen. The unit can be bound to as many as sixteen IP cameras in total, so you switch between groups rather than seeing all sixteen at once.

Can it run on Wi-Fi instead of a LAN cable?

Yes, it supports 2.4GHz Wi-Fi as well as 100Mbps Ethernet. For a panel carrying four live video streams we generally recommend the Ethernet cable, since a wired link is steadier and can also deliver PoE power to the same point.

Will it work with the door terminals?

It supports up to five indoor extensions and has a microphone and speaker with noise suppression for two-way talk. Confirm your exact door unit model with us on WhatsApp so the pairing is matched before you buy.

Need this installed in Lahore?

Send the model number on WhatsApp for the current price, availability and a full installation quote.

Specifications sourced from the Pollo Security product page: https://www.pollosecurity.com/products/plc-vd3200-pm-touchhub-indoor-security-terminal
