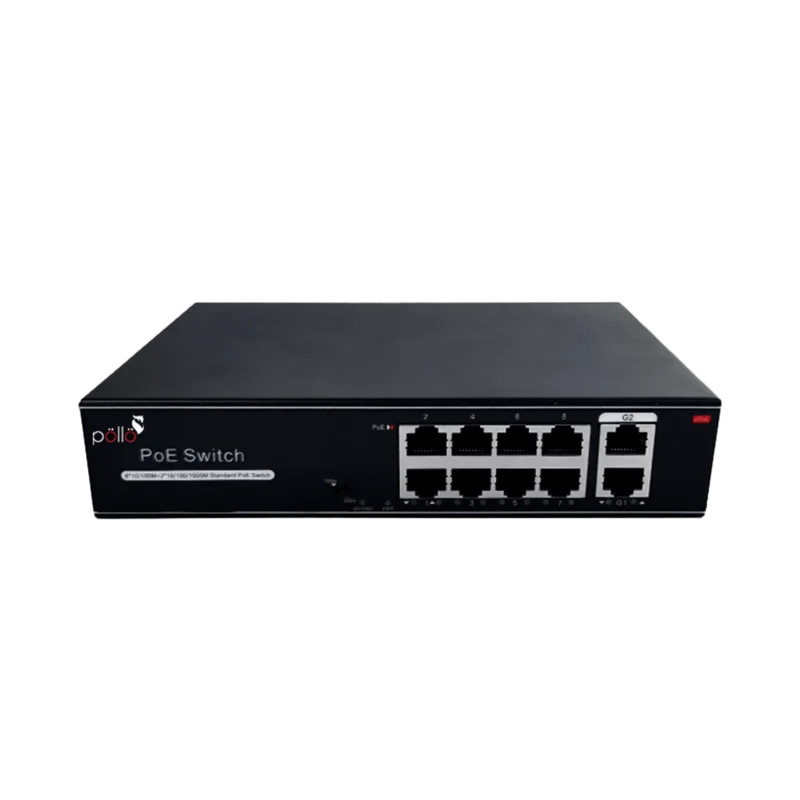

10-Port Megabit PoE Network Switch with Gigabit Uplink (PLN 1108 MGB) — Pollo Security, available from StrixLink Lahore

10-Port Megabit PoE Network Switch with Gigabit Uplink

Pollo Security Model: PLN 1108 MGB Available in Lahore

Contact for Price

  • Switching Capacity: 11.8 Gbps switching capacity · 4.17 Mpps forwarding rate
  • Maximum 30 W per PoE port
  • Certified: CCC, CE, FCC, RoHS
  • Total PoE power budget up to 120 W
  • 11.8 Gbps non-blocking switching capacity
  • 4.17 Mpps forwarding rate @64-byte packets

Stock changes daily. Please confirm availability on WhatsApp before travelling.

  • WarrantyAll Pollo Security products supplied by StrixLink carry the manufacturer warranty. Confirm the exact warranty term for your model on WhatsApp before you order.
  • InstallationProfessional installation available across Lahore. Installation is quoted separately based on the number of cameras, cable runs and site conditions.
  • DeliveryDelivery available across Lahore and to other cities in Pakistan. Delivery time and charges are confirmed when you place your order.

About the 10-Port Megabit PoE Network Switch with Gigabit Uplink

The uplink is what separates this model from the plain megabit switch. Its eight PoE ports still run at 10/100 for the cameras, but the two uplink ports are gigabit, so everything the cameras send back to the recorder is no longer squeezed through a 100 Mbps link. Extender mode is retained for runs up to 250 m on Cat5, with 11.8 Gbps switching capacity and a 4.17 Mpps forwarding rate behind it. PoE follows 802.3af/at at up to 30 W per port against a 120 W total budget, which is worth totalling before you connect anything power-hungry.

Key benefits

  • Gigabit uplinks stop the return path to the recorder becoming the bottleneck
  • Extender mode still reaches up to 250 m on Cat5 for distant cameras
  • 3K MAC address table and 2 MB buffer handle a mixed camera and data network
  • 802.3af/at PoE at up to 30 W per port within a 120 W budget
  • Operating range of -20°C to +55°C suits a hot rooftop cabinet
  • 4 KV lightning protection and IP30 build for indoor or enclosed installation

Where it works well

  • Long-run cameras feeding a recorder over a gigabit uplink
  • School campus in Johar Town with cameras in distant blocks
  • Society entrance sited far from the main equipment room
  • Plaza basement to rooftop camera runs on existing Cat5
  • Factory perimeter cameras returning to a central rack

Technical specifications

Manufacturer-published specifications. Confirm critical figures against the datasheet before ordering.

Network Ports10 ports total
Uplink Ports2 × Gigabit uplink
Switching Capacity11.8 Gbps switching capacity · 4.17 Mpps forwarding rate
Ingress ProtectionIP30
ConnectivityPoE

Features

  • 8 × 10/100Base-TX PoE ports for data and power
  • 2 × Gigabit uplink RJ45 ports (10/100/1000Base-T)
  • Ports 1–8 support 10/100 Mbps, ports 9–10 support 10/100/1000 Mbps
  • Full/half-duplex operation with MDI/MDI-X auto-adaptation
  • Built-in Extender mode for long-distance transmission
  • Extended transmission up to 250 m on Cat5 UTP
  • Complies with IEEE 802.3 / 802.3u / 802.3x standards
  • Store-and-forward switching with full wire-speed performance
  • 11.8 Gbps non-blocking switching capacity
  • 4.17 Mpps forwarding rate @64-byte packets
  • 3K MAC address table with 2 MB buffer memory
  • IEEE 802.3af/at PoE supported on ports 1–8
  • Maximum 30 W per PoE port
  • Total PoE power budget up to 120 W
  • Built-in AC power supply (100–240 V, 50/60 Hz)
  • Low power consumption: <5 W standby, <120 W full load
  • LED indicators for power, link, PoE, and extender status
  • Operating temperature range -20°C to +55°C
  • Desktop and wall-mount installation options
  • 4 KV lightning protection, IP30 protection level
  • Certified: CCC, CE, FCC, RoHS

Frequently asked questions

How is this different from the standard megabit switch?

The camera ports are the same 10/100, but the two uplink ports here are gigabit rather than 10/100. That matters because all eight cameras share the uplink to the recorder, so a gigabit path removes a common congestion point. Both models keep extender mode for 250 m runs.

Should I pay for gigabit camera ports instead?

If the cameras are high-bitrate 8MP units on short runs, gigabit ports throughout give more headroom. This model exists for the situation where distance forces your hand but you still want a fast link back to the recorder. Which one fits depends on the longest cable run on your site, so measure it first.

What is the total PoE power available?

Up to 120 W across ports one to eight, with a 30 W ceiling on any single port. Add up the draw of every camera you intend to connect and keep some margin. Cameras with IR illuminators, heaters or motors draw more than plain fixed units, so check those figures before committing.

Can it be wall-mounted in an equipment cupboard?

Yes, both desktop and wall-mount installation are supported, and the LED indicators for power, link, PoE and extender status stay visible either way. Keep some airflow around it in a closed cupboard, especially through a Lahore summer. We will confirm suitability when we look at your cabinet.

Need this installed in Lahore?

Send the model number on WhatsApp for the current price, availability and a full installation quote.

Specifications sourced from the Pollo Security product page: https://www.pollosecurity.com/products/10-port-megabit-poe-network-switch-with-gigabit-uplink
