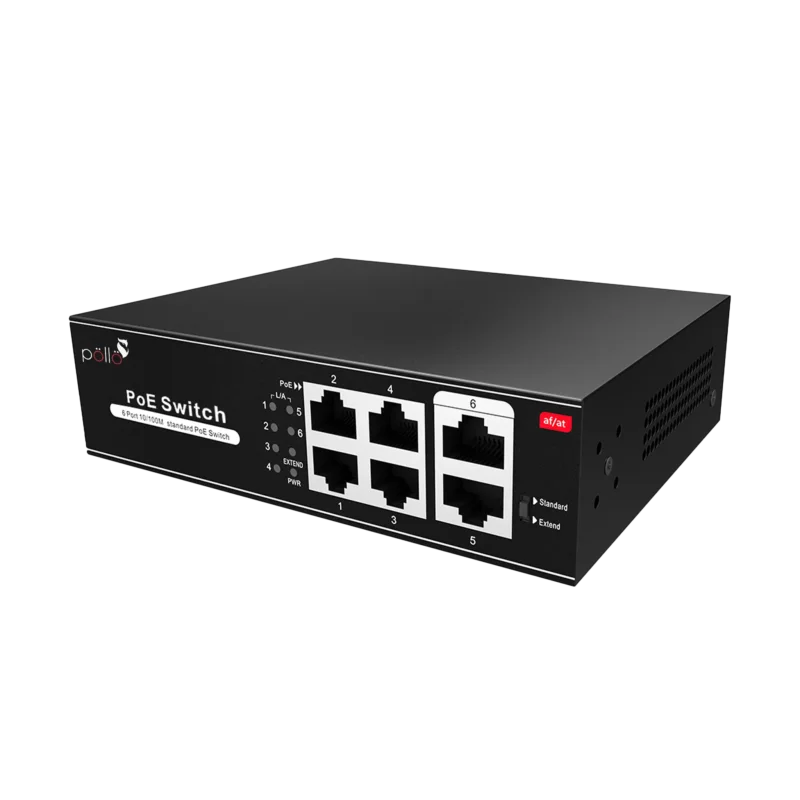

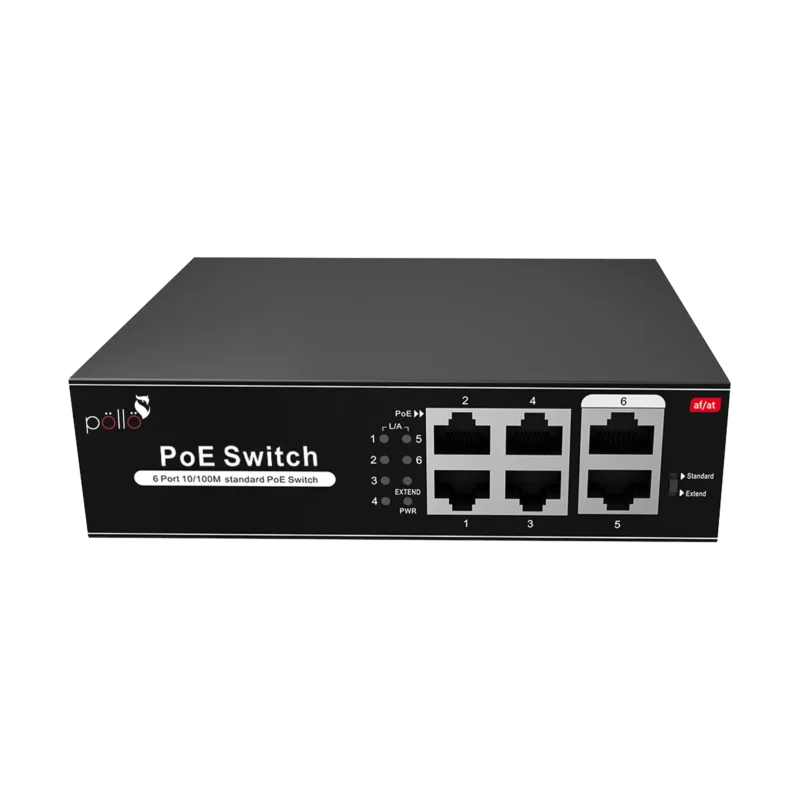

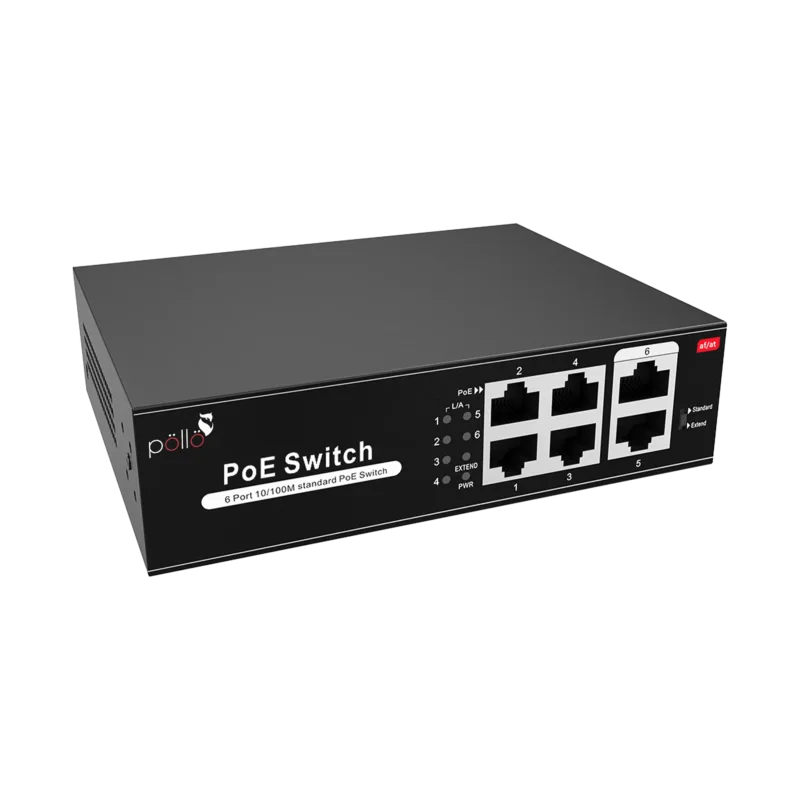

6-Port Megabit PoE Network Switch (PLN 1104 MB) — Pollo Security, available from StrixLink Lahore

6-Port Megabit PoE Network Switch

Pollo Security Model: PLN 1104 MB Available in Lahore

Contact for Price

  • Switching Capacity: 1.6 Gbps switching capacity · 0.98 Mpps forwarding rate
  • 1K MAC address table
  • 768 KB buffer memory
  • Up to 30 W PoE power per port
  • Total PoE power budget of 65 W
  • Forwarding rate up to 0.98 Mpps

Stock changes daily. Please confirm availability on WhatsApp before travelling.

  • WarrantyAll Pollo Security products supplied by StrixLink carry the manufacturer warranty. Confirm the exact warranty term for your model on WhatsApp before you order.
  • InstallationProfessional installation available across Lahore. Installation is quoted separately based on the number of cameras, cable runs and site conditions.
  • DeliveryDelivery available across Lahore and to other cities in Pakistan. Delivery time and charges are confirmed when you place your order.

About the 6-Port Megabit PoE Network Switch

Distance is the reason to choose this one. Switched into extend mode, a PoE camera run stretches to 250 metres on 10BASE-TX, which covers the far gate or the boundary corner sitting past the usual 100-metre limit. The cost of that reach is speed: the ports are 10/100 Mbps, extend mode drops to 10BASE-TX, and the two uplinks top out at 100 Mbps each. For two or three cameras on a long run that is a fair trade; for a high-bitrate multi-camera wall it is not. Pricing is confirmed on WhatsApp.

Key benefits

  • Extend mode carries a PoE camera up to 250 metres, well past the standard 100
  • Extender and CCTV modes are selected on the unit itself, with a restart after changing
  • IEEE 802.3af/at on ports 1 to 4 powers cameras from the same cable as data
  • Under 3 W standby draw suits sites running on inverter or UPS backup
  • Store-and-forward switching with a 768 KB buffer smooths bursts from several cameras at once
  • Built-in 100–240 V power supply means one less adapter to mount at each site

Where it works well

  • Gate camera 200 metres down a farmhouse driveway off Bedian Road
  • Boundary wall cameras on a large plot with a central recorder
  • Small warehouse yard with two or three cameras on long runs
  • Petrol pump forecourt where the office sits well back from the canopy
  • Budget upgrade where existing cameras are 100 Mbps devices anyway

Technical specifications

Manufacturer-published specifications. Confirm critical figures against the datasheet before ordering.

Network Ports6 ports total
Switching Capacity1.6 Gbps switching capacity · 0.98 Mpps forwarding rate
ConnectivityPoE

Features

  • 4 × 10/100 Mbps PoE ports for data and power
  • 2 × 10/100 Mbps uplink RJ45 ports
  • Ports 1–6 support auto-detection and MDI/MDI-X auto-sensing
  • Supports full and half-duplex transmission
  • Extender + CCTV functional switch (restart required after switching)
  • Extended transmission up to 250 m on 10BASE-TX
  • Standard transmission up to 100 m on 100BASE-TX
  • Compliant with IEEE 802.3, 802.3u, and 802.3x standards
  • Store-and-forward forwarding mode
  • 1.6 Gbps non-blocking switching capacity
  • Forwarding rate up to 0.98 Mpps
  • 1K MAC address table
  • 768 KB buffer memory
  • IEEE 802.3af/at PoE support on ports 1–4
  • Up to 30 W PoE power per port
  • Total PoE power budget of 65 W

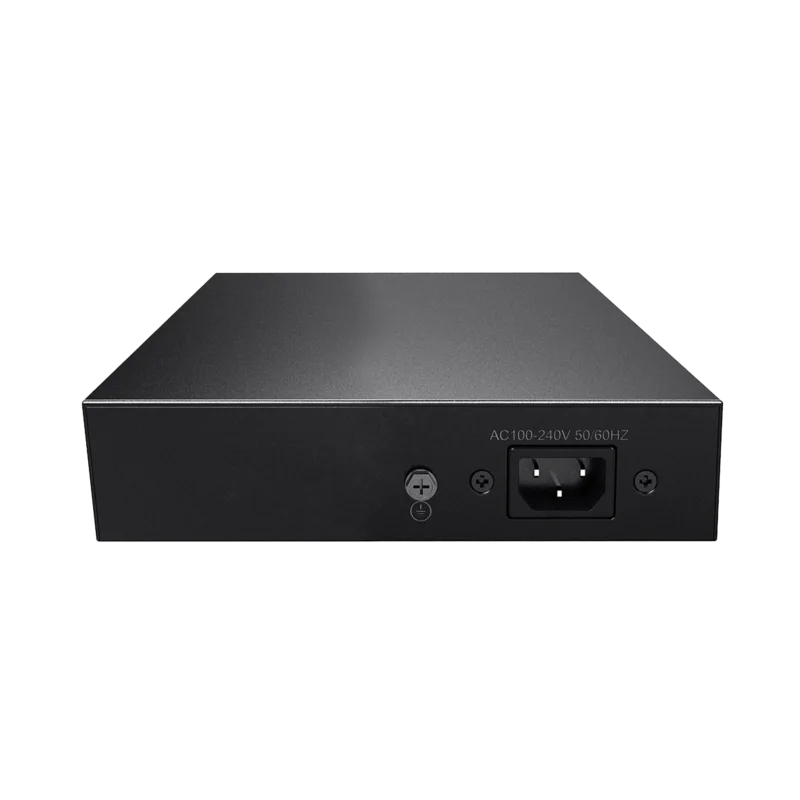

  • Built-in AC power supply (100–240 V, 50/60 Hz)
  • Low power consumption (<3 W standby)
  • LED indicators for power, network, PoE, and extend mode

Frequently asked questions

How does the 250-metre extend mode actually work?

You set the unit to extend mode with the extender and CCTV mode switch, then restart it, as the change only takes effect after a restart. Ports then operate on 10BASE-TX, and that lower signalling rate is what buys the longer reach. It is a distance-for-speed exchange rather than free extra range, so plan the camera count accordingly.

Should I buy this or the Gigabit model?

Choose this one when the problem is distance and the camera count is small. Choose the Gigabit model when you want 1000 Mbps ports and a 16 Gbps fabric for higher-resolution streams. Only this model has extend mode, and only the Gigabit model has Gigabit ports, so it is a genuine either-or. Message us on WhatsApp with your site layout and camera list.

Will it handle 4K cameras?

The ports run at 10/100 Mbps and each uplink tops out at 100 Mbps, so that is the ceiling on the path to your recorder. What matters is the combined bitrate of your streams against that ceiling, not the resolution label on the box. Where the numbers come close, the Gigabit model is the safer purchase.

Can I mount it outdoors near the gate?

No weather rating is quoted for this model, and it uses a built-in AC supply, so it belongs inside a building, a cabinet, or a lockable enclosure. On gate and boundary installs we normally house it in a weatherproof box alongside the power point. The enclosure and mains arrangement are part of what we discuss before quoting on WhatsApp.

Need this installed in Lahore?

Send the model number on WhatsApp for the current price, availability and a full installation quote.

Specifications sourced from the Pollo Security product page: https://www.pollosecurity.com/products/6-port-megabit-poe-network-switch
