10-Port Megabit PoE Network Switch

Q: When should I choose this over the gigabit version?

When distance is the problem and bandwidth is not. If a camera sits far beyond a normal cable run, extender mode reaching 250 m solves something a gigabit switch cannot. If instead you are running several high-bitrate 8MP cameras over short runs, the gigabit model is the better fit.

Q: Will 10/100 ports handle 8MP cameras?

A small number at sensible bitrates, yes; a full set streaming at high bitrate is where the 100 Mbps ceiling starts to show, and the uplinks on this model are also 10/100. If you want long reach and a gigabit path back to the recorder, look at the version with gigabit uplinks. We will size it against your actual camera settings rather than the headline resolution.

Q: Does extender mode need any special cable?

Cat5 or higher is what the specification calls for, and the quality of the run matters more at extended distance than it does over short lengths. Poor terminations that pass on a 30 m run will cause problems at 250 m. We test long runs before commissioning for that reason.

Q: Can it sit outdoors near the camera?

Only inside a proper weatherproof enclosure. IP30 protection covers solid objects rather than rain, so it is not suitable for direct exposure. Many long-run installations do exactly this — a sealed box at a mid-point on the property with the switch inside.

Pollo Security Model: PLN 1108 MB Available in Lahore

Contact for Price

Switching Capacity: 2 Gbps switching capacity · 1.488 Mpps forwarding rate
Maximum 30 W per PoE port
Certified with CCC, CE, FCC, RoHS
Total PoE power budget up to 100 W
2 Gbps non-blocking switching capacity
Supports IEEE 802.3af/at PoE on ports 1–8

Quantity

Get a Quote on WhatsApp Request Installation on WhatsApp

Need availability or technical advice? Ask on WhatsApp

Stock changes daily. Please confirm availability on WhatsApp before travelling.

WarrantyAll Pollo Security products supplied by StrixLink carry the manufacturer warranty. Confirm the exact warranty term for your model on WhatsApp before you order.
InstallationProfessional installation available across Lahore. Installation is quoted separately based on the number of cameras, cable runs and site conditions.
DeliveryDelivery available across Lahore and to other cities in Pakistan. Delivery time and charges are confirmed when you place your order.

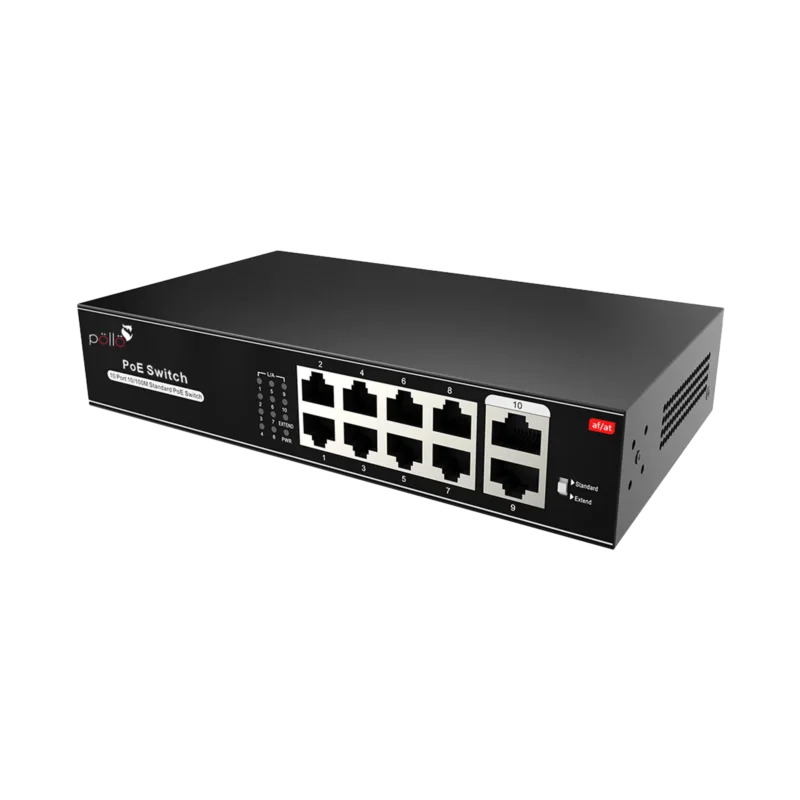

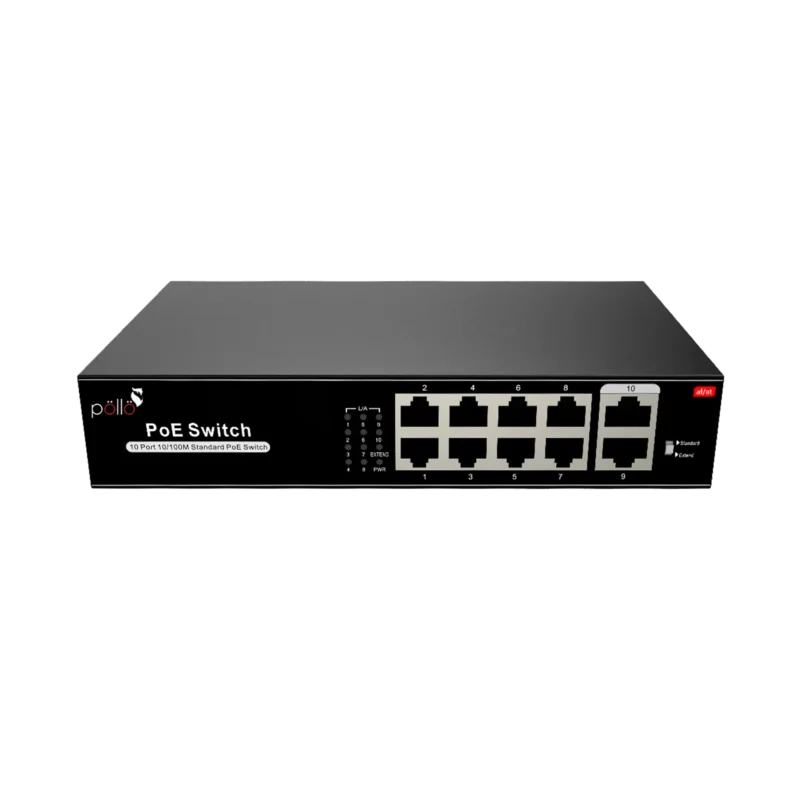

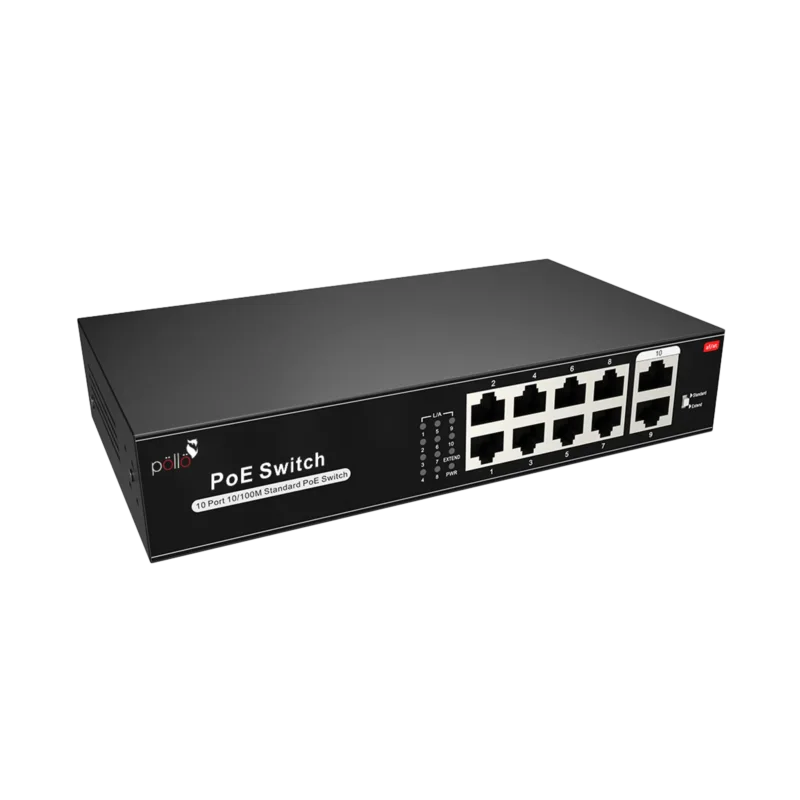

About the 10-Port Megabit PoE Network Switch

Reach is what this switch is for. Extender mode, selected with the built-in CCTV mode switch, pushes transmission out to 250 m on Cat5 or better cable, which solves the gate camera or the far corner of a plot that sits well past a normal run. The trade-off is throughput: the PoE ports are 10/100, backed by 2 Gbps switching capacity and a 1.488 Mpps forwarding rate, so this is not the switch for a dense bank of high-bitrate 8MP cameras. It runs from -20°C to +55°C and carries 4 KV lightning protection, which counts on exposed cabling.

Key benefits

Extender mode reaches up to 250 m on Cat5 or better, well past a standard run
Built-in CCTV mode switch dedicates the unit to camera traffic without configuration
Eight 802.3af/at PoE ports at up to 30 W each within a 100 W budget
Operating range of -20°C to +55°C copes with an unconditioned equipment cupboard
4 KV lightning protection guards against surges on long outdoor cable runs
LED indicators for power, link, PoE and extender status simplify fault finding

Where it works well

Gate camera at the far end of a large plot
Farmhouse on Bedian Road with unusually long cable runs
Boundary wall cameras sitting beyond standard Ethernet distance
Warehouse yard where trenching a second cable route is impractical
Society entrance camera far from the guardroom equipment cabinet

Technical specifications

Manufacturer-published specifications. Confirm critical figures against the datasheet before ordering.

Network Ports	10 ports total
Switching Capacity	2 Gbps switching capacity · 1.488 Mpps forwarding rate
Ingress Protection	IP30
Connectivity	PoE

Features

8 × 10/100Base-TX PoE ports for data and power delivery
2 × 10/100Base-TX uplink RJ45 ports for network connection
All ports support auto-detection, full/half-duplex, MDI/MDI-X
Built-in Extender + CCTV mode functional switch
Extended transmission up to 250 meters on Cat5 or higher cable
Compliant with IEEE 802.3 / 802.3u / 802.3x standards
Store-and-forward switching with full wire-speed performance
2 Gbps non-blocking switching capacity
1.488 Mpps forwarding rate 64-byte packets
1K MAC address table with 768 KB buffer memory
Supports IEEE 802.3af/at PoE on ports 1–8
Maximum 30 W per PoE port
Total PoE power budget up to 100 W
Built-in AC power supply (100–240 V, 50/60 Hz)
Low power consumption: <5 W standby, <100 W full load
LED indicators for power, link, PoE, and extender status
Operating temperature range -20°C to +55°C
Desktop and wall-mount installation options
4 KV lightning protection, IP30 protection level
Certified with CCC, CE, FCC, RoHS

Frequently asked questions

When should I choose this over the gigabit version?

When distance is the problem and bandwidth is not. If a camera sits far beyond a normal cable run, extender mode reaching 250 m solves something a gigabit switch cannot. If instead you are running several high-bitrate 8MP cameras over short runs, the gigabit model is the better fit.

Will 10/100 ports handle 8MP cameras?

A small number at sensible bitrates, yes; a full set streaming at high bitrate is where the 100 Mbps ceiling starts to show, and the uplinks on this model are also 10/100. If you want long reach and a gigabit path back to the recorder, look at the version with gigabit uplinks. We will size it against your actual camera settings rather than the headline resolution.

Does extender mode need any special cable?

Cat5 or higher is what the specification calls for, and the quality of the run matters more at extended distance than it does over short lengths. Poor terminations that pass on a 30 m run will cause problems at 250 m. We test long runs before commissioning for that reason.

Can it sit outdoors near the camera?

Only inside a proper weatherproof enclosure. IP30 protection covers solid objects rather than rain, so it is not suitable for direct exposure. Many long-run installations do exactly this — a sealed box at a mid-point on the property with the switch inside.
