28-Port Gigabit PoE Network Switch with 2 SFP

Pollo Security Model: PLN-1124GB-SFP Available in Lahore

Contact for Price

PoE Ports: 24 × Gigabit PoE
SFP Ports: 2
Switching Capacity: 56 Gbps switching capacity · 41.66 Mpps forwarding rate
Supports 9.6K jumbo frames
Certified: CCC, CE, FCC, RoHS
Total PoE power budget up to 400 W

Quantity

Get a Quote on WhatsApp Request Installation on WhatsApp

Need availability or technical advice? Ask on WhatsApp

Stock changes daily. Please confirm availability on WhatsApp before travelling.

WarrantyAll Pollo Security products supplied by StrixLink carry the manufacturer warranty. Confirm the exact warranty term for your model on WhatsApp before you order.
InstallationProfessional installation available across Lahore. Installation is quoted separately based on the number of cameras, cable runs and site conditions.
DeliveryDelivery available across Lahore and to other cities in Pakistan. Delivery time and charges are confirmed when you place your order.

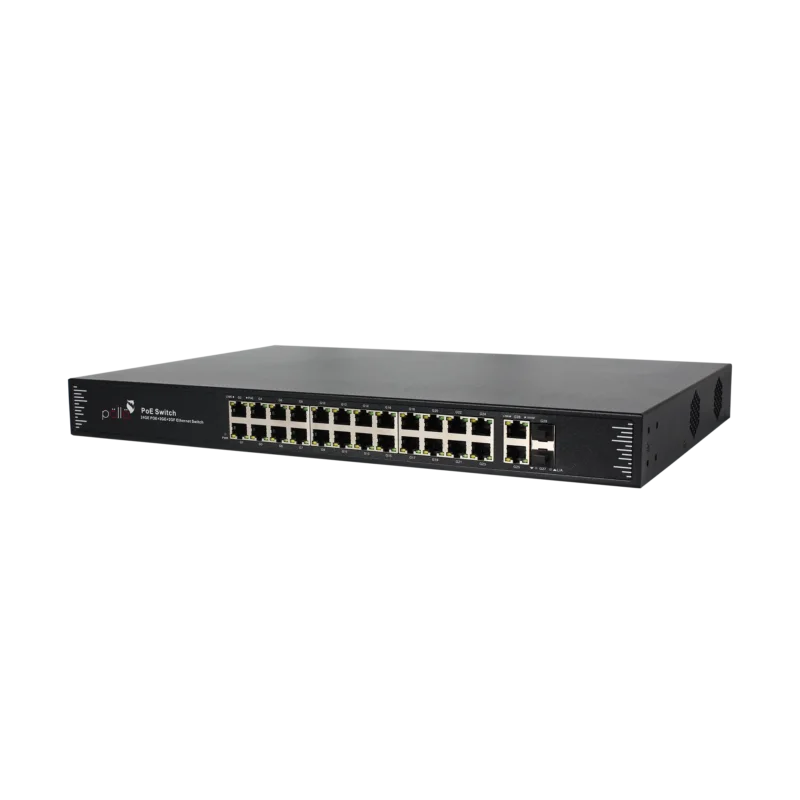

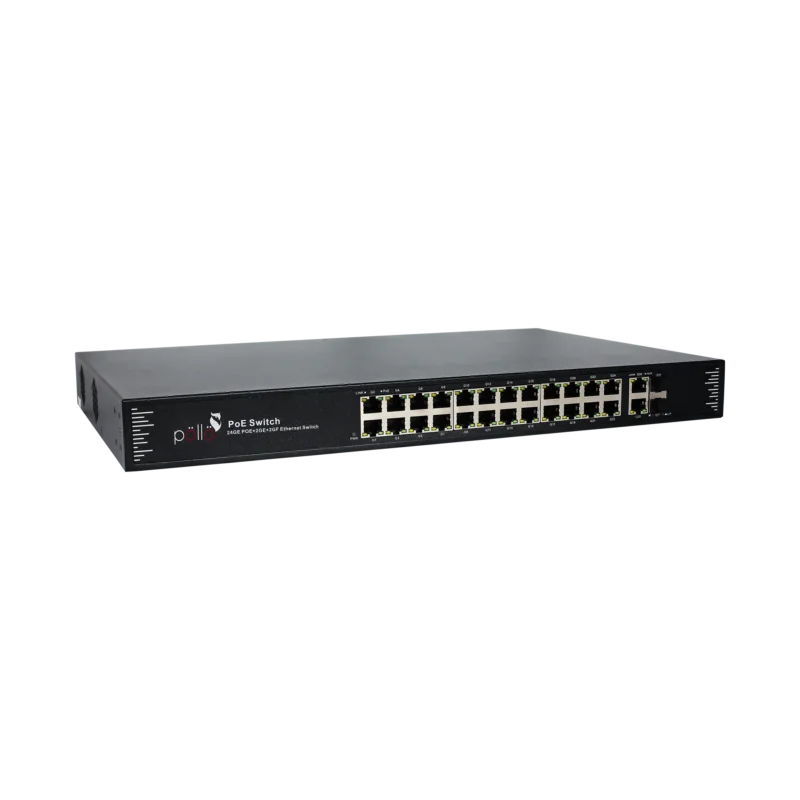

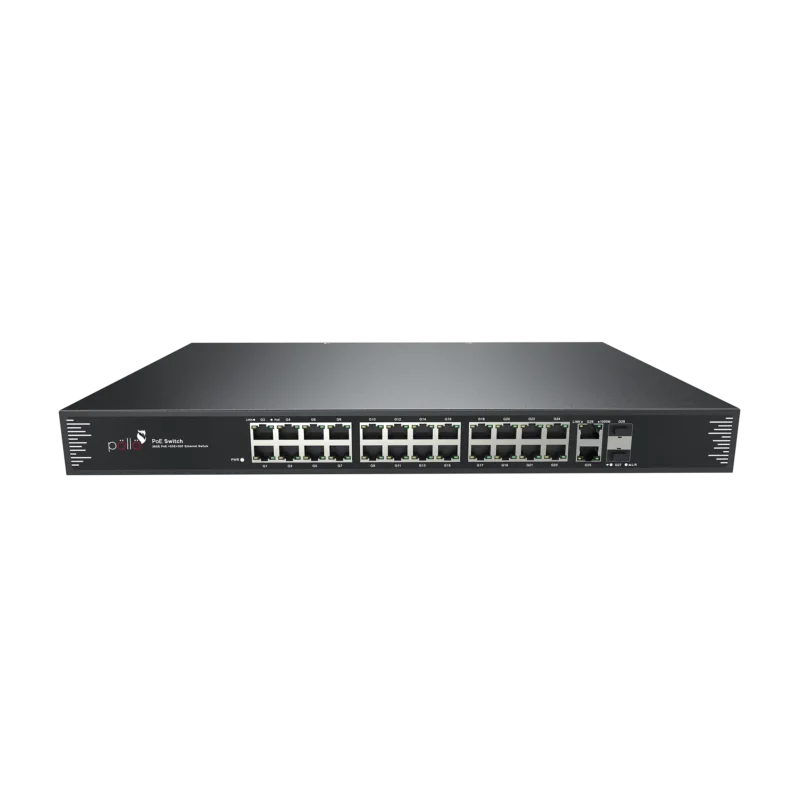

About the 28-Port Gigabit PoE Network Switch with 2 SFP

A twenty-four camera site needs a switch that will not become the bottleneck itself. This 1U unit gives you 24 Gigabit PoE ports for the cameras, two Gigabit RJ45 uplinks and two SFP slots for the run back to the NVR or the core switch, with 56 Gbps of non-blocking switching behind them. The trade-off worth understanding before you order is power rather than data: the PoE budget is 400 W in total, so twenty-four ports each pulling the full 30 W is not achievable. Available in Lahore, with pricing confirmed on WhatsApp.

Key benefits

Twenty-four Gigabit PoE ports run camera data and power over one cable per device
56 Gbps switching capacity and 41.66 Mpps forwarding keep every port at wire speed
Two SFP slots take single-mode or multi-mode modules when copper distance runs out
Rack, wall and desktop mounting options suit a proper cabinet or a cupboard shelf
4 KV lightning protection on the ports, with an IP30 housing rated for indoor racks
Jumbo frames to 9.6K and a 4 MB buffer help with sustained video traffic

Where it works well

Twenty-plus camera system across a commercial plaza on Ferozepur Road
Main rack of a factory CCTV network in Sundar Industrial Estate
Campus with several blocks wired back to one NVR room
Fibre uplink between a warehouse and its office block in Badami Bagh
Large DHA house running cameras, access points and access control together

Technical specifications

Manufacturer-published specifications. Confirm critical figures against the datasheet before ordering.

Network Ports	28 ports total
PoE Ports	24 × Gigabit PoE
Uplink Ports	2 × Gigabit uplink
SFP Ports	2
Switching Capacity	56 Gbps switching capacity · 41.66 Mpps forwarding rate
Ingress Protection	IP30
Connectivity	PoE

Features

24 × Gigabit PoE ports (10/100/1000Base-T) for data and power
2 × Gigabit uplink RJ45 ports for high-speed networking
2 × Gigabit SFP uplink slots for fiber connectivity
Auto-sensing ports with full/half-duplex and MDI/MDI-X support
Supports Cat3–Cat5e UTP with transmission up to 100 meters
Gigabit SFP ports support single-mode and multi-mode fiber (optional modules)
Optical distance up to 120 km depending on SFP module type
Compliant with IEEE 802.3 / 802.3u / 802.3ab / 802.3z / 802.3x standards
Store-and-forward switching with full wire-speed performance
56 Gbps non-blocking switching capacity
41.66 Mpps forwarding rate @64-byte packets
8K MAC address table with 4 MB buffer memory
Supports 9.6K jumbo frames
IEEE 802.3af/at PoE on ports 1–24, up to 30 W per port
Total PoE power budget up to 400 W
Built-in AC power supply (100–240 V, 50/60 Hz)
LED indicators for power, link, PoE, and fiber status
One-button factory reset supported
Desktop, wall-mount, and 19" 1U rack-mount installation options
4 KV lightning protection with IP30 protection level
Certified: CCC, CE, FCC, RoHS

Frequently asked questions

Can I run all 24 cameras at 30 W each?

No. A single port can deliver up to 30 W, but the switch carries a 400 W total PoE budget shared across all 24 ports. The figure to work with is the rated draw of your actual cameras added together, not the per-port maximum. Send us the model list on WhatsApp and we will run that sum with you before you commit.

Are the SFP modules supplied with the switch?

The two SFP slots are supplied empty and the modules are ordered to match your fibre. Single-mode and multi-mode are both supported, and the optical reach depends entirely on the module chosen, up to 120 km at the top end. Tell us the distance and fibre type on WhatsApp and we will quote the matching pair.

How far can I take a camera on copper from this switch?

Up to 100 metres over Cat3 to Cat5e UTP, which is the rated transmission distance for the copper ports. Beyond that you either move to fibre through the SFP slots or place a second switch closer to the cameras. On plaza and campus jobs, fibre between blocks is usually the cleaner answer than chaining copper.

Will it fit a standard rack, and does it need a separate power supply?

It is a 19-inch 1U unit, so it occupies one space in a normal cabinet, and desktop or wall mounting is supported if you have no rack. The AC power supply is built in and accepts 100–240 V at 50/60 Hz, so there is no external brick to place. LED indicators cover power, link, PoE and fibre status for quick checks at the rack.
