10-Port Gigabit PoE Network Switch (PLN 1108 GB) — Pollo Security, available from StrixLink Lahore

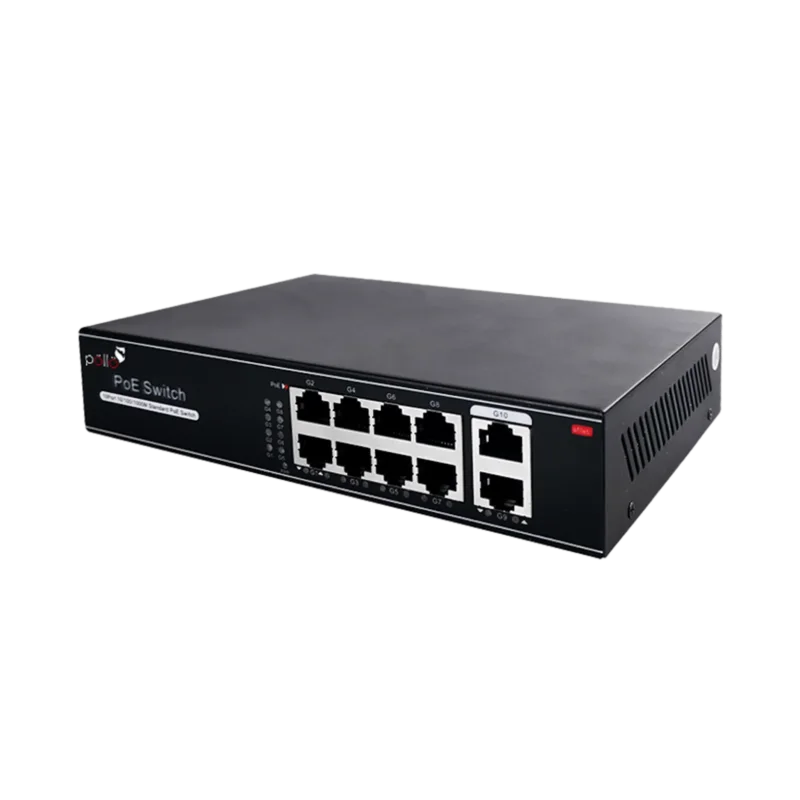

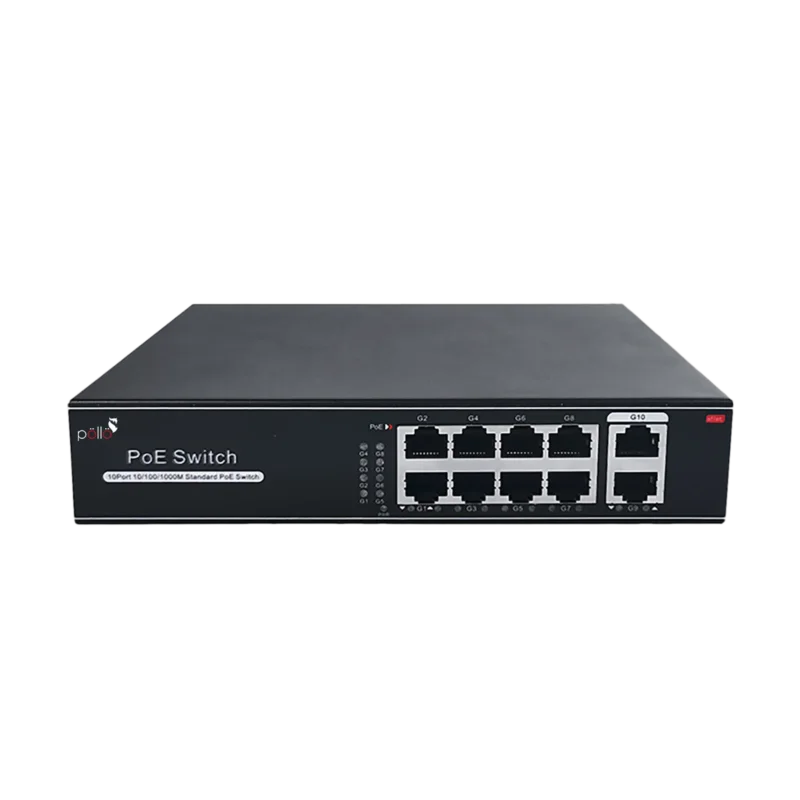

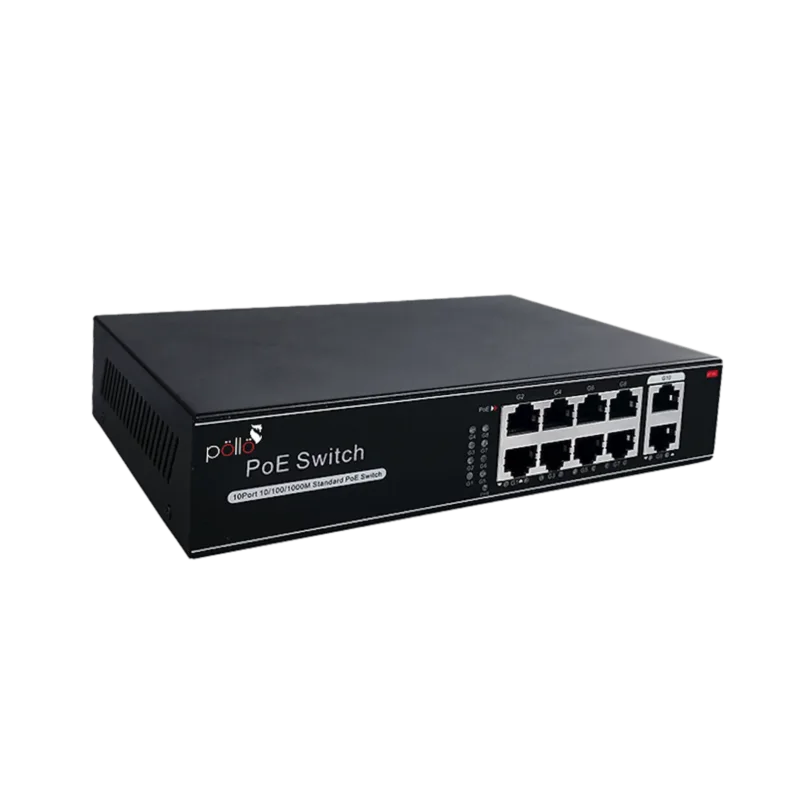

10-Port Gigabit PoE Network Switch

Pollo Security Model: PLN 1108 GB Available in Lahore

Contact for Price

  • PoE Ports: 8 × Gigabit PoE
  • Switching Capacity: 20 Gbps switching capacity · 14.88 Mpps forwarding rate
  • Supports 9.2K jumbo frames
  • Certified: CCC, CE, FCC, RoHS
  • IEEE 802.3af/at PoE on ports 1–8
  • 20 Gbps non-blocking switching capacity

Stock changes daily. Please confirm availability on WhatsApp before travelling.

  • WarrantyAll Pollo Security products supplied by StrixLink carry the manufacturer warranty. Confirm the exact warranty term for your model on WhatsApp before you order.
  • InstallationProfessional installation available across Lahore. Installation is quoted separately based on the number of cameras, cable runs and site conditions.
  • DeliveryDelivery available across Lahore and to other cities in Pakistan. Delivery time and charges are confirmed when you place your order.

About the 10-Port Gigabit PoE Network Switch

Gigabit on every port is what separates this switch from the megabit models in the same family. Eight PoE ports carry power and data out to the cameras, two gigabit uplinks bring the traffic back to the recorder, and 20 Gbps of switching capacity with a 14.88 Mpps forwarding rate means the switch itself is not the bottleneck when several 8MP streams run together. The practical limit is power rather than bandwidth: 30 W is available per port against a 120 W total budget, so what your cameras actually draw is worth adding up first. Cat5e runs are rated to 100 m.

Key benefits

  • Eight gigabit PoE ports deliver data and power over one cable per camera
  • 20 Gbps switching capacity and 14.88 Mpps forwarding keep multiple 8MP streams flowing
  • Two gigabit uplink ports keep recorder traffic clear of the camera ports
  • 4 KV lightning protection matters on cable runs that leave the building
  • Jumbo frame support to 9.2K and a 2K MAC table suit camera networks
  • Draws under 6 W at standby and up to 120 W at full PoE load

Where it works well

  • Eight-camera office network in a Gulberg commercial building
  • Cabinet-mounted distribution point in a housing society guardroom
  • Small factory office in Township mixing cameras and workstations
  • Home network cabinet in Bahria Town feeding 8MP cameras
  • Shop back office where cameras and a router share one enclosure

Technical specifications

Manufacturer-published specifications. Confirm critical figures against the datasheet before ordering.

Network Ports10 ports total
PoE Ports8 × Gigabit PoE
Uplink Ports2 × Gigabit uplink
Switching Capacity20 Gbps switching capacity · 14.88 Mpps forwarding rate
Ingress ProtectionIP30
ConnectivityPoE

Features

  • 8 × Gigabit PoE ports (10/100/1000Base-T) for data & power
  • 2 × Gigabit uplink RJ45 ports (10/100/1000Base-T)
  • Auto-sensing ports with MDI/MDI-X self-adaptation, full/half duplex
  • Supports Cat3–Cat5e UTP, transmission distance up to 100 m
  • Compliant with IEEE 802.3 / 802.3u / 802.3ab / 802.3x standards
  • Store-and-Forward switching, full wire-speed performance
  • 20 Gbps non-blocking switching capacity
  • 14.88 Mpps forwarding rate @64-byte packets
  • 2K MAC address table, 2 MB buffer memory
  • Supports 9.2K jumbo frames
  • IEEE 802.3af/at PoE on ports 1–8
  • 30 W max per PoE port, 120 W total PoE budget
  • Built-in AC power supply (100–240 V, 50/60 Hz)
  • Low power consumption: <6 W standby, <120 W full load
  • LED indicators for Power, Link, and PoE status
  • Supports desktop and wall-mount installation
  • 4KV lightning protection, IP30 protection level
  • Certified: CCC, CE, FCC, RoHS

Frequently asked questions

Can I run eight cameras at 30 W each?

No. Thirty watts is the per-port maximum, but the total PoE budget is 120 W across the eight ports, so what matters is the sum of what everything connected actually draws. Standard fixed cameras normally leave plenty of headroom; pan-tilt units and cameras with heaters are the ones to check against their own datasheets. Send us your camera model on WhatsApp and we will do the arithmetic.

Can I mount this outside on a pole?

Not as it is. IP30 protection guards against solid objects, not water, so outdoors it belongs inside a sealed weatherproof enclosure. In Lahore's monsoon that is not optional. The 4 KV lightning protection helps with surges on the cable, but it does not make the housing weatherproof.

Is this a managed switch?

The published feature set covers store-and-forward switching, PoE, jumbo frames and lightning protection; it does not list VLAN support or web management. For a straightforward camera network that is usually all you need. If your site requires VLAN segmentation or per-port control, tell us and we will point you at a suitable alternative.

How far can the cameras be from the switch?

Up to 100 m on Cat3 to Cat5e UTP, per the switch specification. Beyond that you either need another switch in the chain or one of the extender-capable models in this range, which push transmission further at reduced speed. Measure the longest run before choosing between them.

Need this installed in Lahore?

Send the model number on WhatsApp for the current price, availability and a full installation quote.

Specifications sourced from the Pollo Security product page: https://www.pollosecurity.com/products/10-port-gigabit-poe-network-switch
