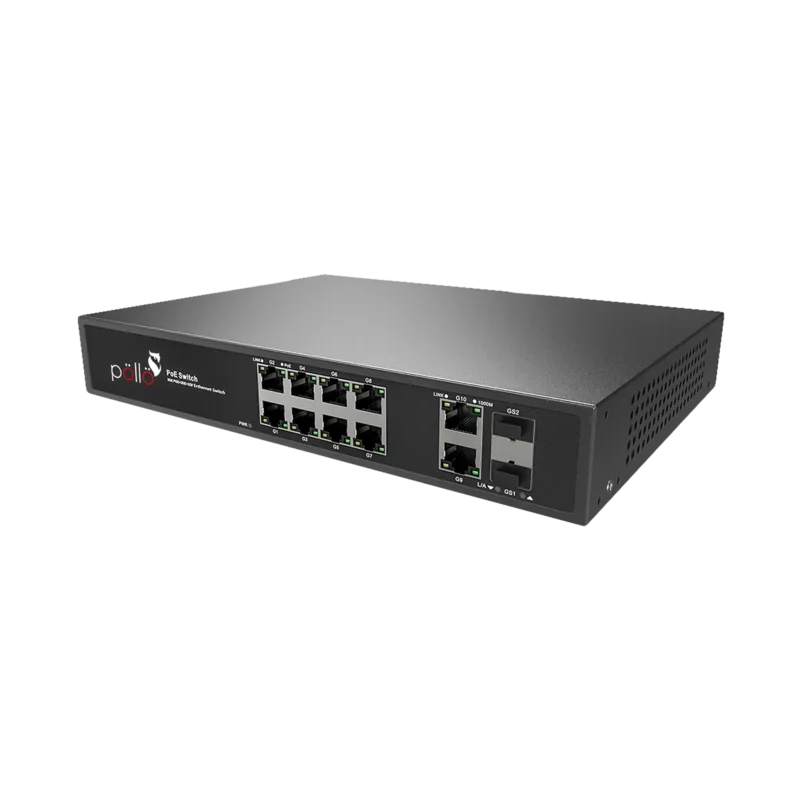

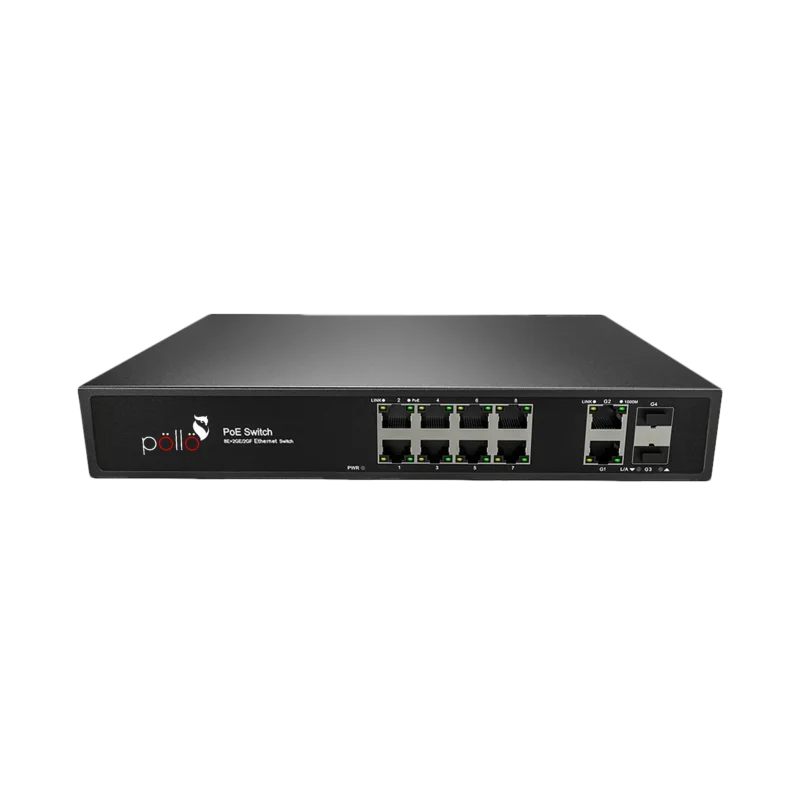

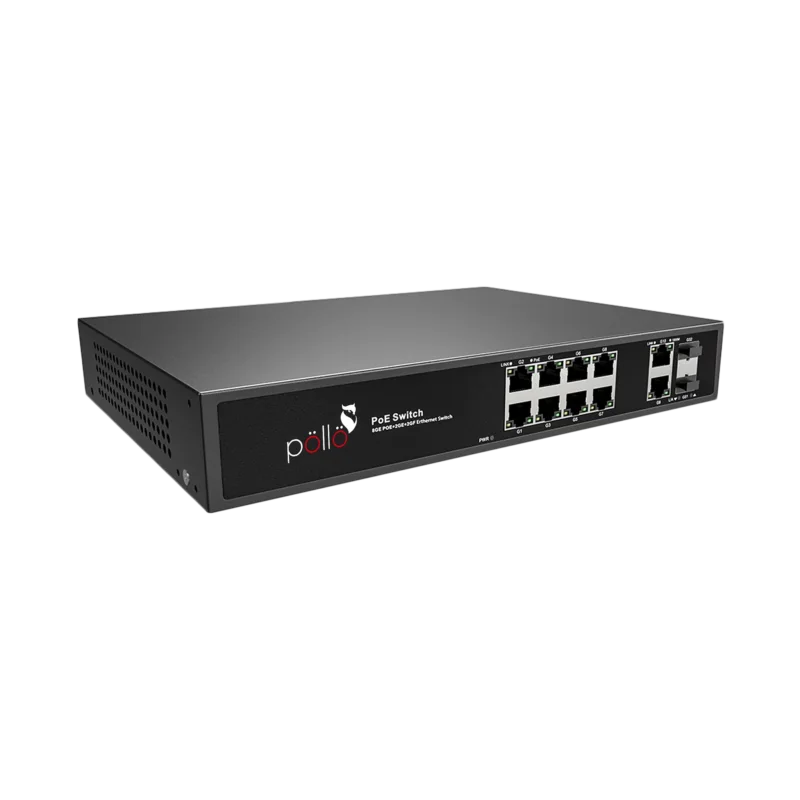

12-Port Megabit PoE Network Switch with Gigabit Uplink & 2 SFP

Pollo Security Model: PLN-1108MGB-SFP Available in Lahore

Contact for Price

SFP Ports: 2
Switching Capacity: 12 Gbps switching capacity · 7.14 Mpps forwarding rate
Supports 9.2K jumbo frames
Certified: CCC, CE, FCC, RoHS
2 × Gigabit SFP fiber uplink slots
Total PoE power budget up to 130 W

Quantity

Get a Quote on WhatsApp Request Installation on WhatsApp

Need availability or technical advice? Ask on WhatsApp

Stock changes daily. Please confirm availability on WhatsApp before travelling.

WarrantyAll Pollo Security products supplied by StrixLink carry the manufacturer warranty. Confirm the exact warranty term for your model on WhatsApp before you order.
InstallationProfessional installation available across Lahore. Installation is quoted separately based on the number of cameras, cable runs and site conditions.
DeliveryDelivery available across Lahore and to other cities in Pakistan. Delivery time and charges are confirmed when you place your order.

About the 12-Port Megabit PoE Network Switch with Gigabit Uplink & 2 SFP

Where the fibre run matters but the cameras themselves are modest, this is the more measured choice. The eight PoE ports are 10/100 rather than gigabit, while the two RJ45 uplinks are gigabit and two SFP slots accept fibre modules for long hauls of up to 120 km depending on the module fitted. Switching capacity is 12 Gbps with a 7.14 Mpps forwarding rate, and PoE follows 802.3af/at at up to 30 W per port within a 130 W budget. Think carefully before pairing it with a full set of high-bitrate 8MP cameras, because the 100 Mbps camera ports are the ceiling.

Key benefits

Two SFP fibre slots link buildings that copper at 100 m cannot reach
Gigabit RJ45 uplinks give a fast return path despite 10/100 camera ports
130 W PoE budget with 30 W per port covers a set of standard cameras
2K MAC table, 2 MB buffer and 9.2K jumbo frame support for camera traffic
19-inch 1U rack, wall or desktop mounting fits existing equipment layouts
4 KV lightning protection reduces surge risk on cabling between structures

Where it works well

Fibre link between blocks carrying moderate bitrate camera traffic
Existing 10/100 camera installation gaining a fibre uplink
Guard post connected back to a control room over fibre
Rack installation where copper distance is the main constraint
Older office network adding cameras without recabling to gigabit

Technical specifications

Manufacturer-published specifications. Confirm critical figures against the datasheet before ordering.

Network Ports	12 ports total
SFP Ports	2
Switching Capacity	12 Gbps switching capacity · 7.14 Mpps forwarding rate
Ingress Protection	IP30
Connectivity	PoE

Features

8 × 10/100 Mbps PoE ports for data and power
2 × 10/100/1000 Mbps RJ45 uplink ports
2 × Gigabit SFP fiber uplink slots
Auto-sensing ports with full/half duplex and MDI/MDI-X support
Supports Cat3–Cat5e UTP cabling up to 100 m
Gigabit SFP ports support single-mode and multi-mode fiber (optional)
Fiber transmission up to 120 km depending on SFP module
Complies with IEEE 802.3 / 802.3u / 802.3ab / 802.3z / 802.3x standards
Store-and-forward switching with full wire-speed performance
12 Gbps non-blocking switching capacity
7.14 Mpps forwarding rate @ 64-byte packets
2K MAC address table with 2 MB buffer memory
Supports 9.2K jumbo frames
IEEE 802.3af/at PoE on ports 1–8, up to 30 W per port
Total PoE power budget up to 130 W
Built-in AC power supply (100–240 V, 50/60 Hz)
LED indicators for power, link/activity, PoE, and gigabit rate
Desktop, wall-mount, and 19" 1U rack-mount installation
4 KV lightning protection with IP30 protection level
Certified: CCC, CE, FCC, RoHS

Frequently asked questions

How does this compare with the gigabit PoE version?

The uplinks and SFP slots are comparable; the difference is at the camera ports, which are 10/100 here and gigabit on the other model. That makes this the choice when cameras are modest and the fibre run is the real requirement. For a dense set of high-bitrate 8MP cameras, spend the difference on gigabit camera ports.

What distance can the fibre uplink cover?

Up to 120 km, but the SFP module fitted determines the actual figure, and modules are ordered separately. Single-mode and multi-mode fibre are both supported. Let us know the fibre type and the distance between your buildings and we will specify the module.

Will 10/100 ports limit my recordings?

They can, if several cameras are streaming at high bitrate at once. Resolution alone is not the whole story — bitrate settings and compression matter as much. We usually check the intended camera settings against the port speed before recommending this model over the gigabit one.

Where can it be installed?

Desktop, wall-mount and 19-inch 1U rack mounting are all supported, and the IP30 rating means indoors or inside an enclosure. LED indicators for power, link activity, PoE and gigabit rate stay visible in any of those positions. Message us on WhatsApp if you want help planning the equipment cabinet layout.
