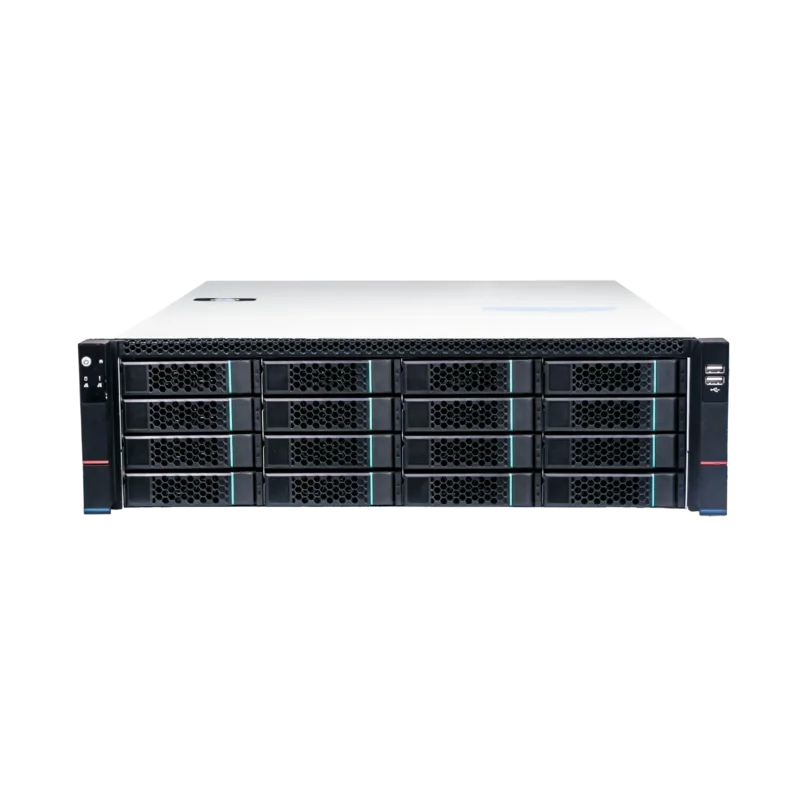

16-SATA Management and Storage Server (PLC-MS616E-E) — Pollo Security, available from StrixLink Lahore

16-SATA Management and Storage Server

Pollo Security Model: PLC-MS616E-E Available in Lahore

Contact for Price

  • 128-Channel Decoding Output Capability
  • Simultaneous Playback up to 16 Channels
  • Hardware RAID Support – RAID 0 / 1 / 5 / 6
  • Advanced IPMI Management with iKVM support
  • 8GB DDR4 ECC Memory (expandable up to 64GB)
  • Independent HDD Brackets for easy maintenance

Stock changes daily. Please confirm availability on WhatsApp before travelling.

Download datasheet (PDF) 527 KB
  • WarrantyAll Pollo Security products supplied by StrixLink carry the manufacturer warranty. Confirm the exact warranty term for your model on WhatsApp before you order.
  • InstallationProfessional installation available across Lahore. Installation is quoted separately based on the number of cameras, cable runs and site conditions.
  • DeliveryDelivery available across Lahore and to other cities in Pakistan. Delivery time and charges are confirmed when you place your order.

About the 16-SATA Management and Storage Server

Combining video management and bulk storage in one chassis, the PLC MS616E E suits sites that would rather run a single box than a separate server and storage pair. An Intel Core i3 on Linux backs 16 hot-swappable 3.5 inch drive bays plus two 2.5 inch SATA positions, reaching up to 256TB with 16TB disks and protected by hardware RAID 0, 1, 5 or 6. It handles up to 2048 channels with 500 device connections and 700 Mbps of incoming recording bandwidth. Bear in mind that consolidating both roles means one chassis carries the whole system, which is why the redundant power supply matters.

Key benefits

  • Sixteen hot-swappable 3.5 inch bays reaching 256TB give deep retention without an external array
  • Hardware RAID 0, 1, 5 and 6 means a failed disk need not cost you the recordings on it
  • Handles up to 2048 channels, expandable to 10,000, so it scales with a growing camera estate
  • Dual gigabit NICs with failover and load balancing keep recording alive if one network path drops
  • Second-level accurate video indexing narrows a search to the moment rather than the hour
  • Redundant 550W power supplies in a 1+1 arrangement remove a single point of failure

Where it works well

  • Central recording room for a multi-site retail or banking network
  • Textile or manufacturing plant with cameras across several production halls
  • Large gated community consolidating recording from many entry points
  • Hospital or university campus running one platform across buildings
  • Logistics yard and warehouse complex needing long footage retention

Technical specifications

Manufacturer-published specifications. Confirm critical figures against the datasheet before ordering.

Bandwidth700 Mbps incoming bandwidth

Features

  • Intel® Core™ i3 Processor for reliable enterprise performance
  • Linux OS – stable, secure, and optimized for 24/7 operation
  • 8GB DDR4 ECC Memory (expandable up to 64GB)
  • Massive Storage Support – 16× 3.5” hot-swappable HDDs + 2× 2.5” SATA
  • Up to 256TB Storage Capacity (max 16TB per HDD)
  • Hardware RAID Support – RAID 0 / 1 / 5 / 6
  • Independent HDD Brackets for easy maintenance
  • High Network Performance – up to 700 Mbps recording & incoming bandwidth
  • Dual Gigabit NICs with Failover & Load Balancing
  • Advanced IPMI Management with iKVM support
  • Supports up to 2048 Channels (expandable to 10,000)
  • 500 Device Access (expandable with authorization)
  • Simultaneous Preview up to 100 Channels (per user)
  • Simultaneous Playback up to 16 Channels
  • 128-Channel Decoding Output Capability
  • Powerful Search Engine – second-level accurate video indexing
  • Web-Based Management with seamless PVMS Plus integration
  • TPM Security Support for enhanced data protection
  • Redundant 550W Power Supply (1+1) for high availability
  • Industrial-Grade Reliability with low noise operation (<50 dBA)

Frequently asked questions

What is the difference between this and the SS316E storage server?

Both use 16 SATA bays and reach the same capacity, but this model carries the management platform as well as the storage. The SS316E is storage-focused and expects a management server elsewhere in the system. If you are building from scratch and want one unit, the MS616E is the simpler answer.

Do the hard disks come with the server?

Drive configuration is decided per project, since capacity depends on camera count, resolution and how long you need to keep footage. Maximum supported capacity is 256TB using 16TB disks. Discuss your retention target with us on WhatsApp and we will size the disks with you.

Can drives be replaced without shutting the system down?

The 16 main bays are hot-swappable and each drive sits in its own bracket, so a disk can be pulled and replaced in place. With RAID 5 or 6 configured, the array rebuilds onto the new disk. This is the main reason to run RAID rather than independent disks.

How many operators can watch live video at the same time?

Simultaneous preview reaches 100 channels per user and playback runs to 16 channels, with 128-channel decoding output available. Real-world numbers depend on stream resolution and the network between the server and each workstation. We can review your control room plan before you order.

Need this installed in Lahore?

Send the model number on WhatsApp for the current price, availability and a full installation quote.

Specifications sourced from the Pollo Security product page: https://www.pollosecurity.com/products/plc-ms616e-e-16-sata-management-and-storage-server
