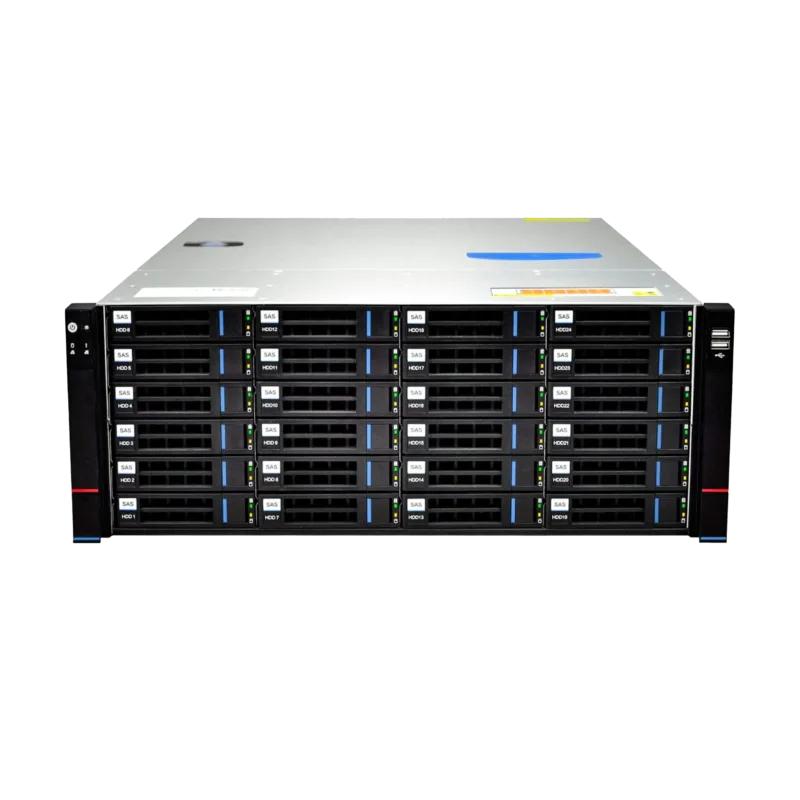

24-SATA Management and Storage Server (PLC-MS624E-E) — Pollo Security, available from StrixLink Lahore

24-SATA Management and Storage Server

Pollo Security Model: PLC-MS624E-E Available in Lahore

Contact for Price

  • Simultaneous Playback: 16 Channels
  • 128-Channel Decoding Output Capability
  • 8GB DDR4 ECC Memory, expandable up to 64GB
  • Maximum Storage up to 384TB (16TB per HDD)
  • Hardware RAID Support – RAID 0 / 1 / 5 / 6
  • Fast Video Search with second-level indexing

Stock changes daily. Please confirm availability on WhatsApp before travelling.

Download datasheet (PDF) 555 KB
  • WarrantyAll Pollo Security products supplied by StrixLink carry the manufacturer warranty. Confirm the exact warranty term for your model on WhatsApp before you order.
  • InstallationProfessional installation available across Lahore. Installation is quoted separately based on the number of cameras, cable runs and site conditions.
  • DeliveryDelivery available across Lahore and to other cities in Pakistan. Delivery time and charges are confirmed when you place your order.

About the 24-SATA Management and Storage Server

When 16 bays run short, the PLC MS624E E takes the same combined management and storage approach up to 24 hot-swappable 3.5 inch drives plus two 2.5 inch SATA positions, for as much as 384TB with 16TB disks. An Intel E3 processor on Linux carries up to 2048 channels, 500 device connections and 700 Mbps of incoming recording bandwidth, with a built-in display controller for local monitoring. The larger drive count is matched by an 800W redundant supply. Worth planning for: 24 spinning disks in one chassis need a properly ventilated rack and a stable power feed.

Key benefits

  • Twenty-four hot-swappable bays reaching 384TB serve sites where retention periods run long
  • Combined management and storage removes the need for a separate management server in the rack
  • Hardware RAID 0, 1, 5 and 6 with independent drive brackets makes disk replacement routine
  • Up to 2048 channels, expandable to 10,000, leaves substantial room for the estate to grow
  • 800W redundant power supplies in a 1+1 arrangement suit installations that cannot afford downtime
  • Preview of 100 channels per user with 16-channel playback supports a properly staffed control room

Where it works well

  • Command centre for a large industrial estate or export processing zone
  • Citywide project consolidating recording from many distributed sites
  • Airport, terminal or transport hub security operations room
  • Large hospital network keeping extended footage across departments
  • Corporate headquarters acting as central archive for regional branches

Technical specifications

Manufacturer-published specifications. Confirm critical figures against the datasheet before ordering.

Bandwidth700 Mbps incoming bandwidth

Features

  • Intel® Core™ E3 Processor for high-performance enterprise workloads
  • Linux Operating System – stable and secure 24/7 operation
  • 8GB DDR4 ECC Memory, expandable up to 64GB
  • Ultra-High Storage Capacity – 24× 3.5” hot-swappable HDDs + 2× 2.5” SATA
  • Maximum Storage up to 384TB (16TB per HDD)
  • Hardware RAID Support – RAID 0 / 1 / 5 / 6
  • Independent HDD Brackets for easy maintenance and scalability
  • High-Speed Performance – 700 Mbps incoming & recording bandwidth
  • Dual Gigabit Network Ports with load balancing & failover
  • Advanced IPMI Management with iKVM remote control
  • Built-in Display Controller for local monitoring
  • Supports up to 2048 Channels (expandable to 10,000)
  • Up to 500 Device Connections (expandable with authorization)
  • Simultaneous Preview: 100 Channels (per user)
  • Simultaneous Playback: 16 Channels
  • 128-Channel Decoding Output Capability
  • Fast Video Search with second-level indexing
  • Web-Based Management with seamless PVMS Plus integration
  • TPM Security Support for enhanced data protection
  • 800W Redundant Power Supply (1+1) for mission-critical reliability
  • Low-Noise Operation – <50 dBA, ideal for data centers

Frequently asked questions

How is this different from the 16-bay MS616E?

The core difference is scale: 24 drive bays instead of 16, up to 384TB instead of 256TB, and an 800W redundant supply rather than 550W. Channel capacity, RAID options and management features are broadly the same. Choose on how long you need to keep footage rather than on camera count alone.

Do I need all 24 bays filled from day one?

No. Populating fewer bays initially and adding drives later is normal practice, provided the RAID plan accounts for it. Each drive sits in its own bracket and the bays are hot-swappable, which keeps expansion straightforward.

What kind of room does it need?

A standard equipment rack with reliable ventilation and a stable power feed. Noise stays under 50 dBA, so it is not disruptive in a shared server room, but 24 drives generate heat that needs to be carried away. Our team can assess the room during the site survey.

Can it manage third-party cameras?

It supports up to 500 device connections, expandable with authorisation, and integrates with PVMS Plus for management. Support depth for non-Pollo devices varies by manufacturer and protocol. Send your device list on WhatsApp so we can check the specific models before you order.

Need this installed in Lahore?

Send the model number on WhatsApp for the current price, availability and a full installation quote.

Specifications sourced from the Pollo Security product page: https://www.pollosecurity.com/products/plc-ms624e-e-24-sata-management-and-storage-server
