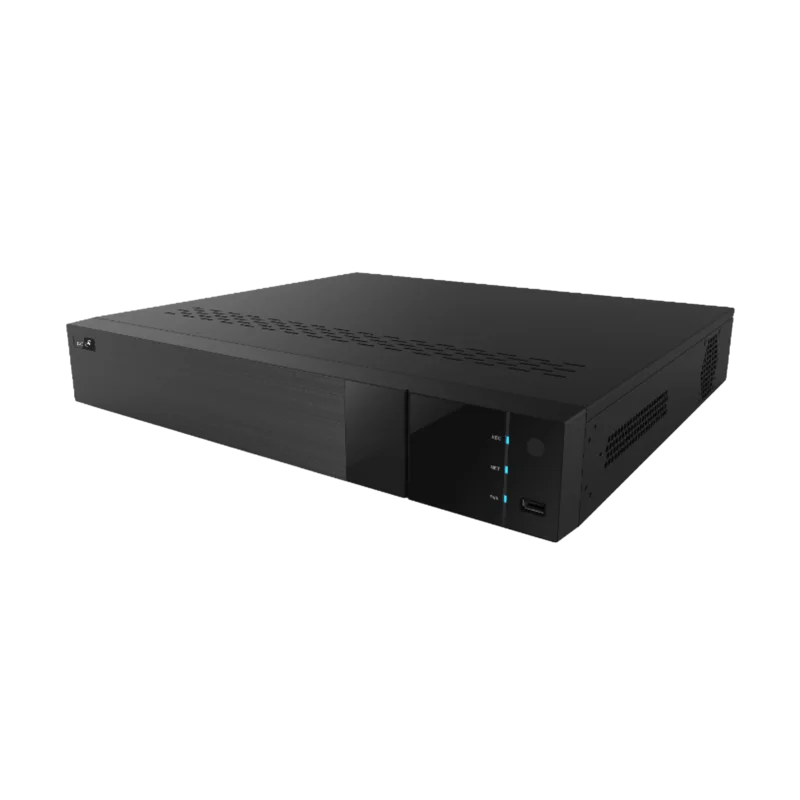

High-Definition Decoder

Pollo Security Model: PLC D1104 PM Available in Lahore

Contact for Price

Memory: LPDDR4 8GB; 16GB eMMC
CPU: RK3588 | OS: Embedded Linux
Power: DC12V, 4A | Consumption: 48W
Alarm Interface: 4CH input, 4CH output
VGA Output: 1920×1080, mirrors HDMI1/2/3
Multi-screen Display: 1/4/9/16/25/36/64 screens

Quantity

Get a Quote on WhatsApp Request Installation on WhatsApp

Need availability or technical advice? Ask on WhatsApp

Stock changes daily. Please confirm availability on WhatsApp before travelling.

Download datasheet (PDF) 653 KB

WarrantyAll Pollo Security products supplied by StrixLink carry the manufacturer warranty. Confirm the exact warranty term for your model on WhatsApp before you order.
InstallationProfessional installation available across Lahore. Installation is quoted separately based on the number of cameras, cable runs and site conditions.
DeliveryDelivery available across Lahore and to other cities in Pakistan. Delivery time and charges are confirmed when you place your order.

About the High-Definition Decoder

Decoding is a separate job from recording, and the PLC D1104 PM exists to take network streams and put them on screens without loading that work onto a recorder or PC. Built on an RK3588 platform running embedded Linux with 8GB LPDDR4, it drives four HDMI outputs, with the first capable of 8K, the second and third of 4K, and the fourth of 1080p. Layouts run from a single window up to 64. The decoding budget is shared across channels, so the honest trade-off is resolution against channel count.

Key benefits

Four HDMI outputs plus a VGA output that mirrors HDMI1, 2 or 3 for a secondary screen
Layouts of 1, 4, 9, 16, 25, 36 or 64 windows suit anything from one feed to a dense wall
Decoding scales with resolution: about 4 channels at 16MP, 32 at 1080p, 255 at CIF, all 30fps
Handles H.264, H.265 and MJPEG, so mixed-generation camera fleets share one display system
Two gigabit RJ45 ports allow the camera network and management network to stay separate
Four alarm inputs and four alarm outputs let the decoder react to or trigger site events

Where it works well

Security control room at a factory in Sundar Industrial Estate
Monitoring desk for a gated housing scheme in Lahore
Campus surveillance office watching gates, hostels and car parks
Retail chain head office reviewing several branch sites
Hospital security room with a multi-screen live wall

Technical specifications

Manufacturer-published specifications. Confirm critical figures against the datasheet before ordering.

Panel Resolution	16 MP
Video Compression	H.265 / H.264 / MJPEG
Power Supply	DC12V

Features

CPU: RK3588 | OS: Embedded Linux
Memory: LPDDR4 8GB; 16GB eMMC
HDMI Outputs: 4×HDMI (HDMI1 up to 8K, HDMI2/3 up to 4K, HDMI4 up to 1080P)
VGA Output: 1920×1080, mirrors HDMI1/2/3
Multi-screen Display: 1/4/9/16/25/36/64 screens
HDMI Input: 1CH, up to 4K, supports multiple resolutions
Video Compression: H.264/H.265/MJPEG | Audio Output: HDMI, G.711
Decoding Capability: Up to 4CH 16MP, 8CH 8MP, 12CH 5MP, 20CH 3MP, 32CH 1080P, 255CH CIF @30fps
Network: 2×RJ45 (10/100/1000M) | USB: 1×USB3.0, 2×USB2.0
Alarm Interface: 4CH input, 4CH output
DVI & Mixed Insertion: Supported | USB Console: 1
Local I/O: RCA input×1 (unused), RCA output×1 (mono)
Power: DC12V, 4A | Consumption: 48W
Working Environment: –10°C to +50°C, 10–90% humidity

Frequently asked questions

How many cameras can it show at once?

It depends entirely on the resolution of those streams. The stated capability runs from about four channels at 16MP down to 255 channels at CIF, with 1080p sitting around 32 channels, all at 30fps. In practice most sites mix resolutions, so the workable number sits somewhere between those figures.

Do I still need a recorder if I have this decoder?

Yes. A decoder handles display only, it does not store video. It pulls streams from your recorders, storage servers or cameras and renders them on the connected screens.

Can all four HDMI outputs run 4K?

No, and this is worth planning around. HDMI1 goes up to 8K, HDMI2 and HDMI3 up to 4K, and HDMI4 is limited to 1080p. Position your most detail-critical screens on the higher-capability outputs.

What power does it need at the rack?

It runs on DC12V at 4A with a rated consumption of 48W, and is specified for operation between -10°C and +50°C at 10 to 90 percent humidity. A control room with normal air conditioning should stay comfortably inside that range.
