8-SATA Management and Storage Server
Contact for Price
- Drive Bays: 8 × SATA
- Supports up to 1000 IP Channels
- 8GB LPDDR4 RAM + 64GB eMMC Storage
- Simultaneous Playback of 16 Channels
- Supports up to 16MP Camera Resolution
- Up to 16 TV Walls with 64 Display Plans
Need availability or technical advice? Ask on WhatsApp
Stock changes daily. Please confirm availability on WhatsApp before travelling.
- WarrantyAll Pollo Security products supplied by StrixLink carry the manufacturer warranty. Confirm the exact warranty term for your model on WhatsApp before you order.
- InstallationProfessional installation available across Lahore. Installation is quoted separately based on the number of cameras, cable runs and site conditions.
- DeliveryDelivery available across Lahore and to other cities in Pakistan. Delivery time and charges are confirmed when you place your order.

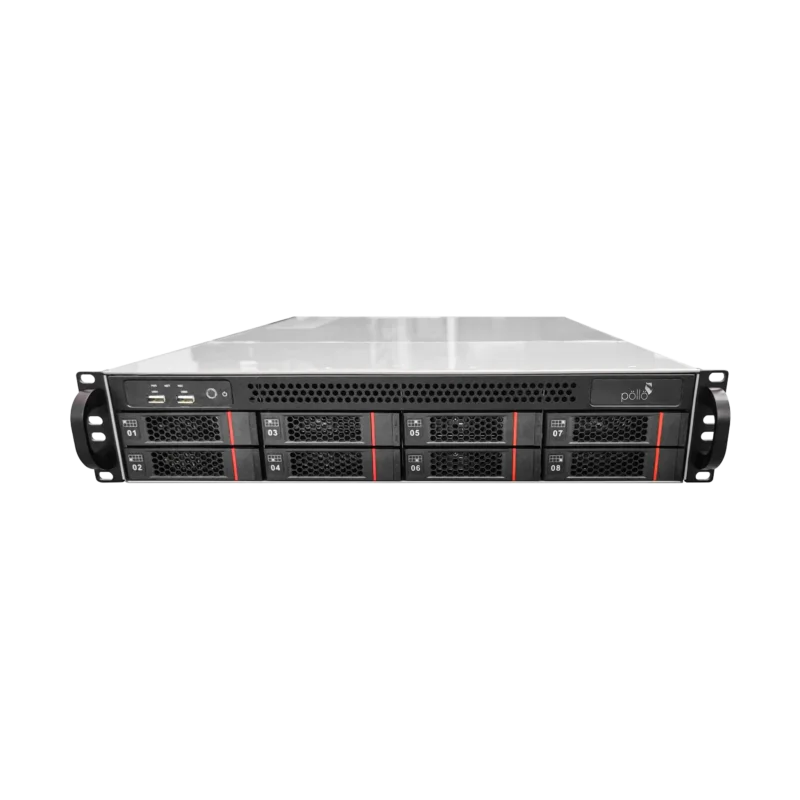

About the 8-SATA Management and Storage Server
An ARM-based design rather than an x86 one, the PLC MSA708M1 A0 uses an 8-core 64-bit AI processor with 8GB LPDDR4 and 64GB eMMC to combine management, storage and analytics in a single unit. It handles cameras up to 16MP across as many as 1000 IP channels, takes 768 Mbps of incoming bandwidth, and runs face recognition against a 50,000-entry database alongside plate recognition for 10,000 vehicles. Eight SATA bays hold up to 80TB. That storage ceiling is the honest limit: the channel and analytics capacity outruns the disks, so long retention usually means adding a storage server.
Key benefits
- An 8-core 64-bit AI processor supports face recognition against a 50,000-face database on the unit
- Vehicle and licence plate recognition covering 10,000 plates suits gated entries and parking control
- Accepts camera resolutions up to 16MP with H.265S, H.265+, H.265 and H.264 compression
- VGA plus four HDMI outputs at up to 3840 x 2160 drive several 4K screens from one box
- Supports up to 1000 IP channels with 768 Mbps incoming and 256 Mbps outgoing bandwidth
- RAID 0, 1, 5, 6 and 10 across eight SATA bays gives flexible protection up to 80TB
Where it works well
- Command centre for a housing scheme using plate recognition at entry gates
- Corporate campus running face recognition at reception and staff entrances
- Secured industrial site combining vehicle logging with perimeter cameras
- Large retail or hospitality group needing analytics and a display wall
- Institutional security office managing several buildings from one platform
Technical specifications
Manufacturer-published specifications. Confirm critical figures against the datasheet before ordering.
| Panel Resolution | 16 MP |
|---|---|
| Drive Bays | 8 × SATA |
| Bandwidth | 768 Mbps incoming bandwidth |
| Video Compression | H.265+ / H.264 |
Features
- High-Performance ARM 8-Core 64-bit AI Processor
- Linux Operating System for stability & security
- 8GB LPDDR4 RAM + 64GB eMMC Storage
- Supports up to 16MP Camera Resolution
- H.265S / H.265+ / H.265 / H.264 Video Compression
- Multiple 4K Outputs – VGA + 4× HDMI (up to 3840×2160)
- Ultra-High Decoding Capability (16MP / 12MP / 8MP streams)
- Simultaneous Playback of 16 Channels
- Supports up to 1000 IP Channels
- Massive Bandwidth: 768 Mbps incoming, 256 Mbps outgoing
- Advanced AI Face Recognition – 50,000 face database
- Vehicle & License Plate Recognition – 10,000 plates
- Supports RAID 0/1/5/6/10 for data protection
- 8× SATA HDD Slots, up to 80TB total storage
- Up to 16 TV Walls with 64 Display Plans
- 256 Devices Supported (including third-party ONVIF)
- 64 Online Users Supported Simultaneously
- Redundant Power Supply for high reliability
- Enterprise-Grade Metal Chassis for 24/7 operation
- Ideal for Command Centers & Mega Surveillance Projects
Frequently asked questions
Does the face recognition work out of the box?
The platform supports a face database of up to 50,000 entries, but results depend heavily on camera placement, lighting and lens choice at each capture point. A camera angled across a doorway at head height performs very differently from one mounted high in a corner. We plan capture points as part of the installation rather than treating recognition as automatic.
Is 80TB enough storage for 1000 channels?
Not for long retention, and this is the main planning point. Eight SATA bays at 80TB total will not hold months of footage from a large estate at 16MP. Most projects at this scale pair the unit with a dedicated storage server, and we can size that combination with you on WhatsApp.
How does an ARM processor compare with the Intel-based servers?
This unit puts AI analytics and decoding on a purpose-built 8-core ARM platform, which is efficient for that workload. The Intel-based management and storage servers focus on much larger drive counts and channel figures without on-board face and plate recognition. Pick according to whether analytics or storage depth is your priority.
Can I connect cameras from other manufacturers?
It supports up to 256 devices including third-party ONVIF cameras. Basic live view and recording generally work, though analytics features are usually fuller with cameras designed for the platform. Share your camera models with us and we will confirm what will and will not carry over.
